Here is the detailed information on the features, applications, uses, and specifications of this popular and most commonly found dual Mosfet 8205A IC with datasheet. If you are looking for a high current transistor to use in battery protection, load switching, or power management PCB circuit, this Dual MOSFET is designed in a way to meet your needs in lithium battery protection circuits. Also provided 8205A Datasheet.
What is the 8205A IC on the lithium-ion battery protection PCB circuit?
8205A IC on the lithium-ion battery protection PCB circuit is dual Mosfet 8205a IC, its function is to control or halt the current through the battery in the situation or as signaled by the controller IC (e.g. DW-0, TP4056, etc.) in case of short circuit, over-current, over-voltage, or over-temperature or over discharge as specified by the controller IC.
8205A Datasheet
Below is the 8205a datasheet from HSMC for reference, download this datasheet at the bottom of the page. Please note that other than pinout/ pin number some specifications may vary slightly from manufacturer to manufacturer. But they can be used as an alternative to each other.
To understand the connections and functionality, let’s explore the pinout of the 8205A showing with the image that includes all 6 pin IC (SOT-26 package) and 8 pin IC (SOP-8 & TSSOP-8 package):
Apart from the pinout diagram, the function and application circuit diagram will be the same for both 6 pin SOT-26 and 8 pin SOP-8.
The pin assignment for the 8205A 6 pin IC (SO-26 package) is described as follows:
The main function of 8205A is to act as a control switch that regulates the flow of current in a circuit.
The 8205A MOSFET found in various circuits, including:
Lithium-ion Battery Protection circuit & Battery Management System: This MOSFET is commonly used in battery protection circuits and management circuits, which is then used for the safe and efficient operation of lithium-ion batteries.
Load Switching Circuit: Its ability to handle high power, current and fast switching makes it suitable for load switching applications in electronic devices.
8205A IC equivalent are 8205S, DMD9926, DMG6968 etc
The 8205A and 8205S are both dual N-channel power MOSFETs, but they have some differences in their electrical characteristics and specifications.
The 8205A has a maximum drain-source voltage of 30V, while the 8205S has a maximum of 20V. The 8205A also has a higher maximum continuous drain current of 8A, compared to the 8205S, which has a maximum of 5A. (also subjected to the different manufacturer)
In terms of their electrical characteristics, the 8205A has a lower drain-source on-state resistance (RDS(on)) than the 8205S. Before reaching any conclusion, you must refer to the datasheet corresponding to the manufacturer or component provider.
At last, the choice between the 8205A and 8205S would depend on the specific requirements of the application, such as the maximum voltage and current needed, as well as the desired RDS(on) value. So, it can be said that 8205s can be replaced by 8205A.
8205A IC circuit diagram schematic:
Image showing internal circuit diagram of 8205A IC, the Drain terminals are shorted internally and available as Drain 1 Drain2 = D

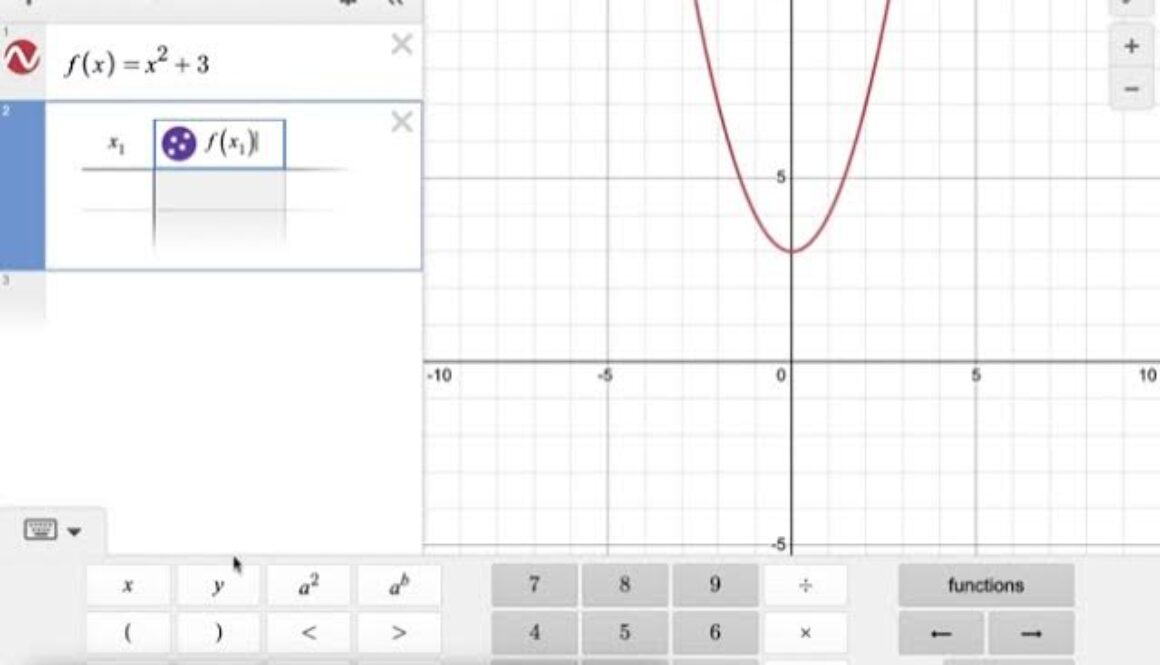

Utilize to the fullest the Android phone with the Best Scientific Calculator App, this app is very useful for Students, Engineers, or anyone requiring to calculate large complex scientific calculations which are more time consuming and not necessary to do manually.
This powerful tool combines advanced mathematical functions with a user-friendly interface, making it the perfect accessory tool for anyone in need of precise calculations for engineering mathematics. With an array of scientific functions at your fingertips, these app allows you to effortlessly perform complex calculations, including trigonometry, logarithms, exponential, and much more. Say goodbye to manual calculations and let these android app handle complicated equations with speed and accuracy.
The top calculators in this list are very useful as they are an all-rounder in all sorts of calculations. Specially HiPER scientific calculator is self-contained for most of your engineering calculations.
HiEdu Scientific Calculator: He-570 is a simply powerful best scientific calculator app that includes standard, scientific, and programmed modes, as well as unit converter, number system conversion, and the equations solver. It’s the all-rounder tool to work with, from billing, measurement conversion in a project, or the academics assignments. And it is a very useful tool for engineers helps to complete complex math, algebra, or geometry problems.
Key Features:
Natural display, scientific Calculations, standard Calculations, mathematical formulas, Physics formulas, Graphing Calc. Inbuilt Programmers can convert numbers between different number bases (2/8/10/16). The display shows numbers in binary, hexadecimal, octal, and decimal, the input can be in binary, hexadecimal, octal, or decimal.
Almost all unit Converters required in day to day life are included like Currency (US dollar, UK pound, IN rupee, JP yen). temperature (Celsius, Fahrenheit, Kelvin), Length (kilometers, miles, meters, yards, feet). Mass (kilograms, pounds, ounces, ton, etc). Speed (km/h, mph, etc). Area (sq. km, sq. miles, hectare, acre, etc). Pressure (kilopascal, bar, PSI, etc). Power (watt, Kw, Hp, etc). Energy in (Joule, Kcalorie, BT). Time (in years, days, hours, seconds). Memory in digital Storage (bit, byte, Kb, Mb, Gb)
HiPER Scientific Calculator
By HiPER Labs
Description:
HiPER Scientific Calculator is a popular android app calculator with more than 15 million downloads and a huge number of five-star ratings.
This calculator has the ability to calculate up to 100 digits of significand and 9 digits exponent. It can detect repeating decimals and numbers and converts them to fractions or decimal equivalent. You can enter equations and expressions in a natural way as you type. The result is displayed as a number or simplified eq.
Features:
You can change the Themes and layout according to your comfort. It has 10 memory slots and 90 scientific constants. As a calculator, it can do basic arithmetic operations including percentage, modulus, and negation.
Fractions in the expression mode can be entered as a numerator and/ or denominator. All the scientific operations required in engineering are supported in HiPER Scientific Calculator.
Scientific Calculator
(formerly known as PowerCalc app)
Developed by Appsbuyout Dev
Description:
Easy and user-friendly to use with realistic appearance. Scientific Calculator is a powerful best Android scientific calculator with a real physical look. It is one of the few Android calculators apps that can solve complex number equations.
Features:
Real equation view editor with brackets and operator priority function, normal or polar complex mode. It can solve equations and save results in history. 7 memories for easy value recalls. You can access Constant Table in memory containing Large universal/ physical/ mathematical/ chemical constants. Degrees, radians, and grads mode for trigonometric operations.
It can do mathematical operations that include equations. Best suited for engineering or graphical calculations.
Pro feature:
It has some paid features that include multi-line equation editor, equation syntax highlighting, actual bracket highlighting, trigonometric functions with complex numbers.
Free Advanced calculator 991 es plus & 991 ex plus
By Nhi Thien Studio Education
Description:
Calculator 991 ES/ 570 ES/ 991 EX is one of the best classroom calculators for Android. The best scientific calculator app 991ES and 570ES of choice for engineers & high school buddies. Natural screen display, powerful and fast functions in it make it highly recommended.
Most of the people download this app thinking of its UI/UX but wait a minute, it does not look like the original 991es physical hard calculator. It might be disappointing to the person who is downloading it thinking of its appearance other than its original UI user interface. This calculator in its equipment form is mostly used by engineering and doctorate students for long and complicated calculations.
Feature :
All necessary features are included from memory to recall function and from number system conversion to complex numbers, everything you want and you need.
Download Calculator 991ES/ 570ES.
Direct APK download
RealCalc Scientific Calculator
By Quartic Software
Description:
RealCalc Scientific Calculator app has over 20 million downloads on the Google play store and 189k+ 5* reviews. It is one of the most popular scientific calculators for Android. RealCalc has somewhat like an artificial look not natural but operates exactly like a real calculator. It has all the standard scientific functions with history, 10 memories, unit converter, and constants table. You can choose from a number of display styles and formats.
It also supports binary, octal, and hexadecimal conversion and operations. RealCalc is easy to use comes with the help section included.
Features:
User-customizable unit conversions and custom constants feature so that you can save each.
All engineering and scientific calculations along with Landscape mode is supported.
APK download
Scientific Calculator free
By RealMax LK
Description:
This is a simple user-friendly scientific calculator app for all your mathematical and engineering calculation tasks.
It has over 1M+ downloads on play store, Download Scientific Calculator 995 (sc-995) for android, it has 76 different functions, binary/octal/hexadecimal conversion, and all mathematical operations. Its memory supports up to 10 variables, Angular measurement in Degrees, Radian, Minute and also able to plots graphs. All Basic Operations, trigonometric and hyperbolic operations, logarithmic operations-complex number-Matrix Operations, 10 variables, HEX, DEC, OCT, BIN conversion, fractions, Degree, Minute, Seconds calculations, Radian, Solving Linear and quadratic equations.
Scientific Calculator Advanced (Free)
By Scientific SoftwareTools
Description:
An essential tool for engineering students. Turn your phone into the best scientific calculator app you can use it 0n android.
Basic, advanced, and graphing modes let you use just what you need when you need it. It’s fast, easy to use, and looks like the real thing.
Best of all, you’ll never lose your scientific calculator when you need it – Scientific Calculator Free goes where you go but Ads in tha apps may bother you.
Feature:
Full color output graphs and display, supports landscape and portrait mode,trigonometry/ log/ exponents/ fraction / complex numbers, Linear/ polynomial equations. Binary, decimal, hexadecimal operations and conversions.
Panecal Scientific Calculator
By Appsys
Description:
It has over 5M+ Downloads, Panecal scientific calculator is feed with lots of mathematical formulas to check your formulas, which enables you to prevent typo. Inbuilt memory enables the function to edit past calculations. This app is preferred by many people for their educational calculation utility. A cursor is displayed on the screen to quickly move to the location on the screen you want quickly to edit.
Panecal allows swipe to scroll through formulas, as well as copy-paste using long tapping, which makes it a user-friendly interface. Also, the display shows the cursor, and you can tap or press the arrow keys to quickly navigate to where you want to edit.
Features:
Vibration response, easy editing with a cursor also copy-paste text, previous question history and answers history in tabular form.
Any base number operation and conversion upto 32bits. Arithmetic, trigonometric, logarithmic, degrees-minutes-seconds calculations. Deg, Rad, Grad, decimal point character. Portrait and landscape screen settings.
For the high-current switching application, the IRF540 MOSFET is one of the popular choice. The IRF540 stands out for its fast switching, rugged device design, low on resistance and cost-effectiveness.
In this article, we have discussed IRF540, check its pinout, equivalent, practical applications, distinctive features, as well as instruction on when and where to employ this high-current N-channel MOSFET.
Main Features:
Maximum Rated voltage across Drain & Source → Vdss=100V
Maximum operating current → Id = upto 28Amps
Gate voltage → VGS(th) = 2V to 4V
Resistance → R(DS)(on)= 77.0 mΩ or 0.077 Ω
Primary function → High current high speed switching.
Parameter overview:
The IRF540 MOSFET is designed for high-current application, having a remarkable 100 Volt drain-to-source voltage limit. Its gate trigger voltage, starting from up to 4V, making it suited to a low-voltage switching control applications as well. As a result of its exceptionally low drain-to-source resistance, the device has an operating current capacity of 100 Amp. With industry standard footprints, this device is available in surface mount and through-hole packages for ease of design.
The below plot showing Typical Transfer Characteristics of MosFet:
-Id (Vs) -Vgs, @ Vds=50V, Pulsed Drain current @20µs with junction temperature maintained at 25°C and 175°C. It can be observed that this MOSFET can be used at as low as 2V-4V for lower current application of up to 5Amp. But for higher Load. Current you need to drive the gate with an appropriate voltage (Vgs) ensuring guaranteed optimal switching performance.
For detail characteristic like Temp. vs Id, Vds vs Ids, check and refer to the IRF540 Datasheet below.
When working with the MOSFET IRF540 circuit, it’s essential to follow recommended practices, including:
Review the datasheet for detailed electrical characteristics and guidelines, especially when implementing N-channel applications. And ensure proper heat sinking to dissipate any generated heat effectively.
Application/ Uses:
High ruggedness and current capability make it an industry-standard choice. Widely available through distribution partners, ideal for 50W applications and drop-in replacements due to standard pinout.
Some of the application of IRF540 are: DC motors in reverse direction, inverters, SMPS (Switched-Mode Power Supplies), lighting systems, load switches, and even battery-powered devices, reverse polarity protection.
Alternatives & Replacement for IRF450 are: IRF3205, IRFB7440, CJ340, etc
In need of high-current switching application, the IRF4905 MOSFET is one of the preferred choice. The IRF4905 stands out for its reliability and efficiency, making it the preferred selection for applications requiring rapid switching speeds and the power control system.
In this article, we have discussed IRF4905, check its pinout, equivalent, practical applications, distinctive features, as well as instruction on when and where to employ this high-current P-channel MOSFET.
Main Features:
Maximum Rated voltage across Drain & Source → Vdss= -55V
Maximum operating current → Id = upto -74 Amps
Gate voltage → VGS(th) = -2V to -4V and lower
Resistance → R(DS)(on)= 20.0 mΩ or 0.02 Ω
Primary function → High current high speed switching.
Parameter overview:
The IRF4905 MOSFET is designed for high-current application, having a remarkable -55 Volt drain-to-source voltage limit. Its gate trigger voltage, starting from -2 volts up to -20V, making it suited to a low-voltage switching control applications as well. As a result of its exceptionally low drain-to-source resistance, the device has an operating current capacity of -79 Amp. With industry standard footprints, this device is available in surface mount and through-hole packages for ease of design.
The below plot showing Typical Transfer Characteristics of MosFet:
-Id (Vs) -Vgs, @ Vds=-25V, Pulsed Drain current @20µs with junction temperature maintained at 25°C and 175°C. It can be observed that this MOSFET can be used at as low as negative 2V-4V for lower current application of up to 5Amp. But for higher Load
Current you need to drive the gate with an appropriate voltage (-Vgs) ensuring guaranteed optimal switching performance.
For detail characteristic like Temp. vs Id, Vds vs Ids, check and refer to the IRF3205 Datasheet below.
When working with the MOSFET IRF4905 circuit, it’s essential to follow recommended practices, including:
Review the datasheet for detailed electrical characteristics and guidelines, especially when implementing P-channel applications. And ensure proper heat sinking to dissipate any generated heat effectively.
Application/ Uses:
High ruggedness and current capability make it an industry-standard choice. Widely available through distribution partners, ideal for low-frequency applications <100kHz and drop-in replacements due to standard pinout.
Some of the application of IRF4905 are: DC motors in reverse direction, inverters, SMPS (Switched-Mode Power Supplies), lighting systems, load switches, and even battery-powered devices, reverse polarity protection.
Alternatives & Replacement for IRF4950 are: IRF9540, IRFB7440, CJ340, etc
In high-current switching scenarios, the IRFZ44N MOSFET is a well-regarded choice. Such powerful transistors play crucial roles in various applications, including device and motor control. The IRF3205 is known for its durability and efficiency, making it a preferred option for tasks requiring very high speed switching and handling high power. Thus, comprehending the features and capabilities of this transistor is significant.
In this article, we’ll explore the IRFZ44N, including its pinout, equivalent components, practical uses, features, and how and where to use this high-current N-channel MOSFET.
The IRFZ44N, made by International Rectifier, is easily recognized by its part number prefix. It boasts low on-resistance, fast switching, and efficient HEXFET power MOSFET design, making it suitable for various commercial and industrial applications with power dissipation needs of up to around 50 watts, preferred TO-220 package.
Main Features:
Maximum Rated voltage across Drain & Source → Vdss= upto 55V
Maximum operating current → Id = upto 49 Amps
Gate voltage → VGS(th) = 2V – 4V and above
Resistance → R(DS)(on)= 17.50 mΩ
Primary function → High current high speed switching.
Parameter overview: The IRFZ44N MOSFET is designed for high-power applications, with the ability to handle a drain-to-source voltage of up to 55 volts. Additionally, it can be triggered with a minimal gate voltage ranging from 2 to 4 volts and above it could be used, making it suitable for low-voltage control. Its maximum operating current of 49 amps is achieved thanks to its exceptionally low drain-to-source resistance of 17.5 milli-Ohms.
Package
TO-220
Transistor
Component
N-Channel
MOSFET
Drain to Source Voltage
55v
Max.
Continues Drain Current
49A
Max.
Voltage Required to Conduct
2V to 4V
Min. (threshold voltage)
Drain Source Resistance
17.5mΩ
On state
Pulsed Drain Current
160A
Max.
Power Dissipation
94W
Max.
Switching time
@ Vdd=28V, Id=25A, Vgs=10V
Rise time
60nS
Typ.
Turn-On delay
12nS
Typ.
Turn-Off delay
44nS
Typ.
Fall time
45nS
Typ.
Internal Inductance & Capacitance
-
Check Datasheet below
Operating temperature
-55 to +170
Degree Centigrade
While these figures represent the absolute maximum ratings, it’s advisable to operate this transistor at around 80% of these limits to ensure safe and reliable performance.
For detail characteristic like Vgs vs Id, Vds vs Ids, check and refer to the IRF3205 Datasheet below.
Make sure the MOSFET is connected properly to a heat sink when operated with a high current application over 2 Amps to ensure proper operation and to increase MOSFET life.
How to test IRFZ44N MOSFET if it is good or faulty?
(Removing the mosfet from the PCB improves the accuracy of the test)
Check Gate Source: In Diode Test mode, connect the positive probe to Gate (G) and the negative probe to Source (S). A voltage drop of around 0.5-0.7 volts indicates a good MOSFET.
Check Drain Source: Set the multimeter to M-Ohms (Resistance) mode and place the probes on Drain (D) and Source (S). A high resistance reading or “OL” (out of range) suggests a good MOSFET.
If the results don’t meet the specified criteria for either test, the MOSFET is likely faulty; otherwise, it is considered in good condition.
For more details on how to test MOSFET click here! (link)
Alternatives & Replacement:
IRFZ44N is very popular and widely available, but if you don’t find it available near you, then its consider alternatives.
The 1st and nearest IRFZ44N alternative is IRF3205, as its specifications are almost same & adding higher current handling capacity. Other alternatives are IRF1405, IRF1407, IRF540N, 2N7000, FDV301N IRF3305, IRFZ44N, IRFB3077, IRFB4110.
It seems like IRF3205 is optimized version of IRFZ44N, IRF3205 is optimized for higher current capability and lower channel resistance as compared to IRFZ44N. In this process of optimization, they have to trade off between operating current and switching time.
Thus, you can observe that the switching time of IRF3205 is lower; and the Maximum Drain Source current is higher (at 110A) than that of IRFZ44N (at 49A). Although the switching time has marginal difference of few nanoseconds, it has lesser to negligible effect on high current load switching.
MOSFET
IRF3205
IRFZ44N
(only main difference are:)
R(DS)(on)
8.0mΩ
17.5mΩ
Drain Source Resistance
Id (max operating current)
110A
49A
Continues Drain Source Current
Switching time
Lower
Higher
Check datasheet below for more
All the parameters as technically similar, so as to use them as an alternative/ replacement other than that of Maximum Load Current/ Drain Source Current.
Application/ Uses:
Automation devices for controlling loads in IoT application, Boost and buck converters, Solar inverters, DC motor speed control, Static Relay driver, SMPS (switch mode power supply), power inverters, embedded system, high-speed switching.
IRFZ44N Switch Circuit diagram for Arduino and General application:
Connecting an Arduino to the IRFZ44N is a simple process, which makes it adaptable for various applications, including IoT and as a relay driver for high-current loads like DC motors and DC Load. The following circuit illustrates how to connect a DC motor and load to the IRFZ44N MOSFET. Ensure proper pin connections to avoid short circuits, particularly for the drain and source.
Although not mandatory, but it’s recommended to include a Gate-Source resistor for circuit optimization. This versatility allowed due to the MOSFET’s ability to handle a wide range of input voltage and current, as indicated in the datasheet for this transistor. (refer the datasheet of this transistor).
For design purposes, you can consider using R(IN) with values of 100 Ohms or 220 Ohms and R(GS) with values of 10K or 100K-Ohm.
In the circuit diagram presented above, option (C) represents the simplest configuration for utilizing the IRF3205 to control various types of loads. Option (A) incorporates a fly-back diode in parallel to prevent reverse polarity voltage spikes from the DC motor, which can occur due to its inductive nature of a DC motor.
For high current switching applications, the IRF3205 MOSFET stands as a most popular and formidable player. As we know that high-powered devices plays an important role in various applications, from power amplifiers to motor control, so understanding its features, characteristics and capabilities is essential. This power MOSFET is renowned for its robustness and efficiency, making it a preferred choice for applications requiring high switching speeds and power handling capabilities.
In this post you get insights of IRF3205 pinout, application,schematic circuit, features, equivalent, and other details about how and where to use this high current N-channel MOSFET.
IRF3205 is manufactured by International Rectifier (now a part of Infineon Technologies), also prefix in the part number indicates the same. Extremely low on-resistance per silicon area, combined with the fast switching speed and high grade device design that HEXFET power MOSFETs are well known. At required power dissipation levels of up to approximately 50 watts, the low thermal resistance and low package cost, TO-220 packages are universally preferred in all commercial and industrial applications.
Main Features:
Maximum Rated voltage across Drain & Source → Vdss= upto 55V
Maximum operating current → Id = upto 110 Amps
Gate voltage → VGS(th) = 2V to 4V
Resistance → R(DS)(on)= 8.0 mΩ
Primary function → High current high speed switching.
Parameter Insight: IRF3205 power MOSFET is made for high power handling capability. It can handle drain to source voltage of up to 55 volts also The Gate voltage can be from 2 to 4 volts, i.e. can be turned on and off using a very small voltage as low as 2V. Its maximum operating current of 110 amps is achieved due to very low drain to source voltage of it mili-Ohm. These are the absolute maximum ratings, but to be on the safe side the operation of this transistor could be 80% of maximum ratings.
Package
TO-220
Transistor
Component
N-Channel
MOSFET
Drain to Source Voltage
55v
Max.
Gate to Source Voltage
±20V
Max.
Continues Drain Current
110A
Max.
Voltage Required to Conduct
2V to 4V
Min. (threshold voltage)
Drain Source Resistance
8mΩ
On state
Pulsed Drain Current
390A
Max.
Power Dissipation
200W
Max.
Switching time
@ Vdd=28V, Id=62A, Vgs=10V
Rise time
101nS
Typ.
Turn-On delay
14nS
Typ.
Turn-Off delay
50nS
Typ.
Fall time
65nS
Typ.
Internal Inductance & Capacitance
-
Check Datasheet below
Operating temperature
-55 to +170
Degree Centigrade
For detail characteristic like Vgs vs Id, Vds vs Ids, check and refer to the IRF3205 Datasheet below.
Always use proper heat sink if this mosfet is connected with high current application above 2 Amps to ensure proper operation and increase the life of MOSFET. If design is with space constrains, then you must solder mosfet ground to PCB metal ground.
How to test IRF3205 MOSFET if it is good or faulty?
(test are more accurate when it is done by removing mosfet from the PCB)
Check Gate Source: If multimeter display a voltage drop (around 0.5 to 0.7 volts) indicating a forward-biased when the positive probe (red) is connected to the gate (G) of the transistor IRF3205 and the negative probe (black) is connected to the source (S) in Diode Test mode.
Check Drain Source: If multimeter display a very high resistance (“OL” on the multimeter means ‘out of range’, means ‘open circuit’).
If any of the above, or both results are absent (or say don’t follow) then the MOSFET is faulty. Otherwise, it is good.
For more details on how to test MOSFET click here! (link)
Alternatives, Equivalent & Replacement: It is very popular and widely available MOSFET in the market, but in case you don’t have availability then you can go with alternatives. The alternatives for IRF3205 are IRFZ44N, IRF1405, IRF1407, IRF3305, IRFB3077, IRFB4110, IRF540N, 2N7000, FDV301N. Check this p channel power mosfet IRF4905
Application: Switching applications for controlling loads in IoT devices, Boost and buck converters, Solar inverters, DC motor speed control, Relay driver, SMPS (switch mode power supply), power inverter, embedded system, automation applications.
Interface the Arduino with IRF3205 is quite simple, also it can be used anywhere for IoT applications or use as a relay drive for driving or controlling the high current load like DC motor, lamp. The below circuit showing how to connect a DC motor and a DC load to IRF 3205 MOSFET. Make sure you connect the pin of MOSFET according to the pin diagram shown above. Drain and source connection should be taken care of to avoid short circuit.
It is not requisite to connect R(GS) and R(IN). But it is recommended to use Gate-Source resistor for circuit optimization. This is because this MOSFET is very versatile and design to handle wide variety of input voltage and current (refer the datasheet of this transistor).
For design purpose, you could use R(IN) = 100 Ohm or 220 Ohm; R(GS)= 10K or 100K
The circuit (C) in above image is the simplest form you can use IRF3205 for driving any kind of the load. The circuit (A) has a fly back diode used in parallel as shown is for preventing the reverse polarity voltage pulse from the DC motor due to inductive in nature.
IRF3205 Inverter circuit:
The IRF3205 inverter circuit is commonly used as 12V DC DIY inverters to get 110/230V AC, especially in medium to high-power applications. Inverters are the circuits that convert direct current (DC) from the battery into alternating current (AC). They find widespread use in various applications, including uninterruptible power supplies (UPS), solar inverters, motor drives, and more.
Here’s the feature that make IRF3205 MOSFET is implemented in inverter circuits, high power switching, PWM control, fast switching speed up to (100nS), high efficiency heat-dissipation, simple driving circuit.
The above circuit is designed using the CD4047 IC. The CD4047 is a CMOS oscillator/divider IC that can be configured to generate a square wave output, which is then used to drive a pair of complementary transistors or MOSFETs to create an AC output of 120/230V. The CD4047 IC is configured in astable mode to produce a square wave oscillation of frequency 50/60 Hz. It generates two output signals, Q and ~Q, with a 50{42041a7992ac3be9e9e29c856254fb498d8c7935d7cf8512da6802e8688e734a} duty cycle. You can read more on working of n-channel mosfet here.
The TP5100 is one of the most widely used battery charging controller IC/ BMS. It is a simple and cost-effective IC that is designed for large current portable electronic devices. One of the main advantages of the TP5100 IC is its compact and simple external circuit, and requires only a few basic additional components to function.
It has several safety features to protect the battery and the charger from being damaged. It can be easily purchased from online retailers or electronics suppliers as a module.
You could implement an 18650 battery charger circuit using TP5100 in two ways, one directly with the TP5100 module available in the market and the other with the TP5100 charger IC. Both are discussed and explained in detail below:
TP5100 is dual mode charging management chip, means it can charge 18650 battery or any 3.7v battery in two ways, one with the dual as well as single cell charging mode with 8.4V/ 4.2 volts.
Main features of TP5100:
Dual 8.4v / 4.2v operation for Li- ion cells.
Programmable charge current from 100mA -2000mA.
Wide operating voltage, from 5V to 18V, with SET/ Mode selection.
Charge Indicator: Blue LED – battery full/ standby; Red LED – charging indicator.
Pin
Remark
1,4,5,16 - VIN
Input supply voltage
2,3 - LX
Power drain MOS-FET connection
6 - PWR_ON¯
Enable/Disable IC (Float)
7 - GND
Ground return
8 - VS
Positive feedback for output current detection
9 - BAT+
Battery positive
10 - VREG
Internal power supply
11 - TS
Temperature sense of battery (refer to datasheet)
12- RTRICK
Trickle pre-charge current set
13 - CS
Chip select input (Float)
14 - STANDBY¯
Charging indicator
15 - CHRG¯
Full charge indicator
Specification:
Switching frequency 400Khz, usable inductance 22uH/ 33uH and more.
Size: 25 * 17 * 5mm ultra-small size.
Input operating voltage: 5-18V DC power supply.
PWR_ON Power battery for switching control.
Absolute maximum voltage: 20V
Operating temperature range: -40 ° to 85 °
BAT Short-Circuit Duration: Continuous.
Chip temperature protection, over-current protection, under-voltage protection.
Battery temperature protection, reverse battery shutdown, short circuit protection.
Steady pre-charge current programmable to 10% -100% of charging current.
TP5100 Application:
Portable equipment, lithium battery various chargers, Smartphone, Audio Bluetooth players, Industrial commercial power supply maintenance.
Below is the simple TP5100 Charging module schematic diagram for single cell li-ion and dual cell. The main IC of the module is the TP5100 chip, which is from manufacturer ‘Top Power ASIC’. It has become quite popular for charging 3.7V li ion batteries as it has all the required battery protection feature like over-charge, short circuit, under voltage and over-temperature protection.
For single battery circuit it uses the 4.2V charging voltage by default, but for dual cells in tp5100 charging module needs to connect ‘SET’ on the module board for 8.4V operation.
Below is the simple circuit diagram for the Li-ion battery charger schematic according to the datasheet of TP5100 with temperature sense disabled.
The Red LED glows when the battery is charging or module is in standby mode, and the Blue LED glows when the battery is fully charged. These indicators are connected to pin number 14 and pin number 15 respectively.
So here’s the TP5100 1s connection for single 3.7V li-ion battery.
The TP5100 module 2s connection manual for dual 3.7V li-ion batteries in series and 8.4 V is selected with ‘SET’ (short circuit).
Components required:
IC TP5100, 2x LED indicator, 3x Cap= 10.1uF (0.1uF || 10uF), 1x Cap= 0.1uF, Ind=22uH or 33uH, 1x Resistor= 1KΩ, Rs= 0.05Ω (2 x R100 SMD resistor 0.1Ω || 0.1Ω), 3.7V Lithium cells, micro USB/ USB C female connector, customized PCB.
Description:
This circuit can be used only for rechargeable battery charging purposes. Here, Rs is chosen to be 0.05Ω for 2000mA of output current. If we talk about TP 5100, it is a switching dc-dc buck regulator. Thus, in Mode 1 (1S), it is required to supply ~5V, and in Mode 2 (2S), it should be ~12V for intended operations.
Mode 1 (Default): You need to just connect 1 Lithium battery across BAT+, BAT- (GND); that’s all, the module will take care of charging process.
Mode 2 (SET): You need to connect 2 Lithium battery in series across BAT+, BAT- (GND); and Connect CS/ Pin 13 with VREG Pin 10 (for module pin “SET” to be connected) for correct charging process.
The charging current (IBAT) of the li-ion cell can be set manually by choosing the value of Rs. In all the modes during charging, the charging current could be determined as follows. The Rs(Ω) vs Ibat(mA) can be determined using the following table :
Note: If you have two 18650 lithium batteries, then by connecting them in series (short-circuit “SET” connections), each battery will charge at 1000mA of current. If you connect one Li-ion battery then it will charge it at the rate up to 2000mA, thus it will charge faster compared to TP4056 module to fully charge a battery.
There are several Charge Controller ICs available in the market, but here discussed popular ones are TP5100, and TP4056. It will help you choose the right one for your application.
TP5100 is an upgraded version of TP5000 with a maximum charging current of 2A. TP4056 is another charge controller IC with a maximum charging current of 1A.
IC TP5100
IC TP4056
Max. charging current
2000mA
1000mA
Li-ion cell
1s, 2s (single & dual cells)
1s (single cell)
Operating voltage/ Input
5V to 18V
5V to 8V
Charge voltage
4.2V, 8.4V
4.2V
Charging voltage control accuracy
>1%
~1.5%
Initial current
no soft-start
soft-start limits inrush current
In conclusion, TP5100 is a more advanced and flexible charge controller IC than TP4056. However, if you are looking for a simple and low-cost charge controller IC, TP4056 may be the right choice for you. The TP5100 is a good option for charging dual-cell lithium-ion or lithium-polymer batteries in power efficient applications.
Before choosing a charge controller IC, it is important to consider the requirements of your application, such as the charging current and charging time.
FAQ:
How many batteries can charge in TP5100?
You can charge one, two or more lithium battery cells with TP5100, but note that it has a max 2000mA of charging current. So, when charging multiple cells, you have to connect them in parallel. Also, the charging current will be divided among them, which will make charging slower. It is recommended to utilize two to four cells at a time with this module.
What is the output current of TP5100?
The maximum output current of TP5100 is 2000mA. It can be programmed to provide charging current from 100mA to 2000mA by changing the value of Rs.
What is the use of TP5100 module?
The TP5100 Module is used to charge either single or double 3.7 lithium-ion cell/ battery at 2Amp of current.
What is the input voltage of TP5100?
The input voltage of TP5100 is minimum 5V for single cell and 12- 18V for dual 3.7 lithium-ion cell.
When using a Leviton 4 way switch wiring diagram and setup, you can control the single light fixture from 3 different locations, while two locations can be operated by using a 3 way switch wiring diagram and setup. In this post you’re going to learn the wiring process for Leviton 4-way switch and 3 way switch setup in the traditional toggle switch configuration or with the modular/ decora. However, the wiring could be a little bit complex but very implementable by keeping proper terminology in consider. Let’s break down the process step by step for clarity.
Assumptions:
You have a single light fixture (bulb) that you want to control from three locations using traditional toggle switches.
You’re using standard electrical wiring, where Black wires are live/hot, White wires are neutral, and bare or green wires are ground.
Materials you’ll need:
Three 3-way toggle switches (labeled A, B)
One 4-way toggle switch (middle)
Electrical connecting wires (black, white, and green)
Wire nuts or other suitable connectors, screwdrivers, wire stripper/cutter.
Leviton 4 way switch wiring diagram:
In the below wiring diagram, one 4-way switch and two 3-way switch is used to control a load (LED bulb) from 3 different location) wiring diagram for older traditional toggle switches.
Leviton 4 Way Switch wiring diagram:
• Begin by attaching one terminal of the Light Bulb to the Common (here marked as “④”) terminal of the 3-way switch labeled ‘A’.
The other terminal of the Bulb should be connected to the Neutral wire (usually White) from the main power supply.• Now, proceed to link the Brass traveler wire labeled “②” from 3-way switch ‘A’ to the Output/Brass terminal of the 4-way switch (middle one).
Similarly, connect the Brass traveler wire “②” from 3-way switch ‘B’ to the Input/Black terminal of the 4-way switch.
• Finally, make a connection between the Black terminal labeled “①” of 3-way switch ‘B’ and the Line Hot/Live wire (typically Black) of the main power supply.
Connection with Leviton 3 way switch wiring diagram is way simpler than that of 4 way switch as we need to wire only two switches, discussed below in detail.
Assumptions:
• You have a single light fixture(LED bulb) that you want to control from 2 different locations using traditional toggle switches.
• You’re using standard electrical wiring, where Black wires are live/hot, White wires are neutral, and bare or green wires are ground.
Materials you’ll need:
• Two 3-way toggle switches.
• Electrical wires (black, white, and green)
• Wire nuts or other suitable connectors, screwdrivers, wire stripper/cutter.
3 way switch wiring Leviton:
• First, connect any one terminal of Load/ bulb to the Common (Black Screw) of the switch ‘B’. Then connect the 2nd terminal of Load to the Neutral/ (White wire) of the mains supply.
• Now, connect Common (Black screw) from switch ‘A’ to the Line Hot of the mains supply.
• Remaining are the Travelers connections, connect both the Travelers from switch ‘A’ to switch ‘B’. (Brass screw from switch ‘A’ to Brass screw of switch ‘B’)
• Don’t forget to connect the ground screws to the ground cable, commonly colored green.
Download 4 way switch wiring diagram PDF and 3 way switch wiring diagram PDF below.
Note: Leviton here is the trademark of the respective company, this website doesn’t own or claim any kind of copyright regarding the design of the switch.
Wiring a 4-way switch could be more complex as compared to a standard single-pole switch or a 3-way switch. It requires specific wiring connections and involves additional electrical connections other than live and neutral in the circuit. It is recommended to refer to the 4 way switch wiring diagrams when installing or wiring a 4-way switch to ensure safety and avoid short circuit over the wrong connections.
What is 4 way switches? Why it is used?
A 4-way switch is a type of electrical switch that is commonly used in residential and commercial buildings to control the lighting in a circuit from multiple locations. The 4 way switch wiring provides the means to turn on and off a light fixture independently, from up to four different switch locations. A long stare case or a large lobby can be an example for this kind of arrangement.
Here is the basic application diagram for simple understanding. This diagram showing the area of application of single pole switch, 3 way switch and a 4 way switch. Also remember some of the basic concepts along with the nomenclature and symbol for easy error free wiring. The different color is assigned to the screw for identifying the Common, Line and Ground.
Also, note that wiring can be different for switches from different manufacturer company, so always check notation/ nomenclature discussed below. There are different variants available that have same functionality but with different position of input-output connection screws, or we can say different arrangements. And this can be tricky sometime for the electrician to connect or troubleshoot, that what we have covered below, so keep reading.
A 4 way switch can not be used as a standalone, it is used in combination with some 3-way switches.
In a typical setup, you have two 3-way switches at either end of the circuit, and one or more 4-way switches in the middle. The 4-way switch acts as a connector between the 3-way switches, allowing the circuit to be controlled from multiple points.
How to wire a 4 way switch?
Below is the most commonly used modular type, (one way to wire a 4-way switch, two 3-way switch and one 4-way switch is used to control a load (LED bulb) from 3 different location) wiring diagram for modular and decora switches. (Output/ traveler pins on vertical axis)
Wiring a 4 Way Switch in 3 Simple Steps:
From two terminal of the (Bulb) Load, one terminal is connected to the Common /Black terminal of the 3 way switch ‘A’ , while the other end is connected to Neutral (White wire) to the mains supply. (120V AC, 60Hz)
Traveler terminal from ‘A’ are connected to the Output/ Brass terminal of a 4-Way switch.
Traveler terminal from ‘B’ are connected to Input/ Black terminal of a 4-Way switch.
Common/ Black terminal from ‘B’ is connected to the Line Hot/ Live (Black wire) to the supply.
The above steps to be applicable for all types of 4 way control wiring and all types of switch if you know how to identify the Line/ Live, Neutral, Common, Traveler terminals. That too are generally mentioned on the switch or in the technical documents comes along with the switches.
Below is the another way to wire a 4-way switch having Output or Traveler pins on diagonal axis. Two 3-way switches and one 4-way switch is required to implement the circuit (LED bulb) from 3 different location)
Important tips and tricks to remember while wiring:
(T) Travelers are INPUT’s/ OUTPUT’s for whatever reason in case of a 4-way switch, this is to be cleared up for your strange brain.
Don’t forget to connect the Green screw to the Ground/ Earth of the supply line.
There are no standards for the colors of wires on 3-way and 4-way switch travelers. The colors could vary depending on whether it is an NM cable or conduit.
With NM cable, the wire colors for travelers will be black and red using 3-wire cable. With conduit, the wire colors for travelers could be any color.
For your reminder, every switch vendor sometimes have their own way of arranging the terminals, so the switches shown here may not match what you have bought are. Therefore, it is recommended to observe and locate the terminal accordingly.
Below (in this wiring diagram, one 4-way switch and two 3-way toggle switch is used to control a load (LED bulb) from 3 different location) wiring diagram for older traditional toggle switches.
Wiring a 4 Way Traditional Switch Toggle type :
Step one is to connect one of the terminal from Bulb to the ④/ Common of 3-way switch ‘A’, and another terminal to Neutral (White wire) of the mains supply.
Now connect ②/ Brass traveler from 3-way switch ‘A’ to the Output/ Brass of the 4-way switch. Similarly, connect ②/ Brass traveler from 3-way switch ‘B’ to the Input/ Black of the 4-way switch.
At the end, connect the ①/ Black terminal from 3-way switch ‘B’ to the Line Hot/ Live (Black wire) of the mains supply.
(link to download page, file at the bottom of the page)
Safety Precautions:
To avoid fire, or fatal shock; turn off power at a circuit breaker or fuse and must ‘Ensure’ that power is off before wiring!
Installed or used in accordance with local electrical codes and regulations.
To clean, use a damp cloth without any soap or detergent. Do NOT use disinfecting products, including sprays or other types of atomized cleaning agents.
Logic Gate Simulator Download PC Free Full Version
For Windows
CircuitVerse Download:
Circuitverse is an Online Logic Gate Simulator application. CircuitVerse Simulator empowers you to capture complex circuit designs with precision through high-resolution image export, including SVG, facilitating impressive sharing and display capabilities… read more
Free Online version:
Logism Download:
Logisim is one of the popular logic gate simulator for Windows PC. It allows you design and simulate logic circuits and also have the capability to views truth table, expression. Important concepts like Product of Sums POS and Sum of Products SOP simplifications. It also provides a variety of components to add to your logic circuit design, like multiplexer, demultiplexer, adder, subtractor, divider, and many more.
Logic.ly Download:
Free Version: https://logic.ly
Paid Version Download:
LogicFriday Download:
Logic Friday is an offline tool that simplifies the process of digital logic design and makes it enjoyable. With LogicFriday, you can visualize your logic functions in multiple windows, analyze truth tables, equations, and gate diagrams effortlessly…
You get basic gates NOT/Inverter, AND, OR; compound gates like NAND, NOR, XOR, XNOR, and input/output Signal indications. Features like (user/numeric input, user/numeric output, clock period in ms, comment, etc.) to draw a logical circuit. You need to drag and drop the components to the main window to create the desired logic gate design. You can also add multiple inputs to a gate, connect components using wire, rename components.
It shows real-time simulation of logic gates on input change. Also, you can use ‘Show Logical Analyzer’ button to view logic gate simulation in oscilloscope simulate view which is very exciting.
Logic Gate Simulator Download Free APK
Logic Gate Simulator App for Android
Smart Logic Simulator:
by Tomasz Czart [Wrapptec]
Smart Logic Simulator makes designing circuits easy by its friendly user interface. You can scale your projects rally quickly by using inbuilt custom IC feature, which allows you to pack advanced circuits into single reusable components and importing is also possible with this android app.
Logic Circuit Simulator Pro:
by Stefan Belinov
Create amazing logic circuits with all the essential logic elements. Use variety of elements to evolve, experiment and learn electronics. This simulator makes designing ‘Combinational Logic Circuit’ quick and easy by its intuitive interface and a lot of options to explore. This android application provides a lot of information for all the elements that can be used.
-Import, export and share circuits by ease.
-Embed circuits in each other.
-Many tutorials and use tips are here to help, if you struggle.
-Many elements which are used in electronics are available – lots of logic gates, programmable arrays, latches, flip-flops, generators, device sensors…
Logic Gate Simulator:
by rain continues
Logic Gate Simulator for Android, Digital Logic Circuit simulation and schematics. Build and simulate Digital circuits right on your Phone. Build logic circuits with logic gates and other components then simulate. As it is extremely simple and easy to use, it takes no time to learn how to use it, suitable for students and teachers who’s learning how digital logic circuit works.
EveryCircuit is a pack of custom-built simulation engine optimized for interactive mobile use, serious numerical methods, and realistic device models. Simplicity, innovation, and power, combined with mobility, make EveryCircuit a must-have companion for high school science and physics students, electrical engineering college students who are interested in Digital logic simulation.
